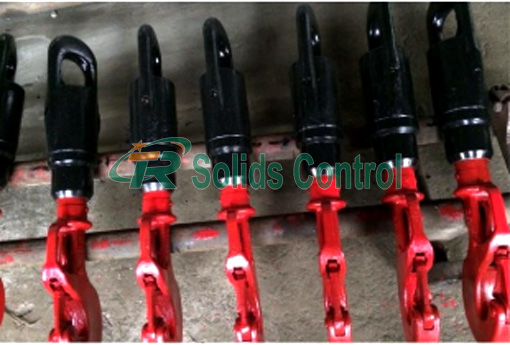

Oilfield Drill Spare Parts Elevator Sucker Rod Hook With API 8A/8C 3/4 - 11/8"

Name: Oilfield Drill Spare Parts Elevator Sucker Rod Hook With API 8A8C 34 118quot
Brand: TR Solids Control
Price: 1 USD

Brand Name : TR Solids Control

Model Number : YG100 YG150 YG170 YG250

Certification : API Spec. ISO Certificate

Place of Origin : Xi'an China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : Within 5 days after deposit

Packaging Details : Pallet or wooden case

Shape : Round

Rated Capacity(Kn) : 890

Hook Style : 3-Hook

Sheave Qty/Dia(mm) : 3/609.6

Wire Line Od(mm) : 25.4

Weight (Kg) : 1010

Dimension : 1685× 675× 510mm

Contact Now

Oilfield Drilling Sucker Rod Elevator Sucker Rod Hook with API 8A/8C 3/4-11/8"

Brief Introduction

Sucker Rod Hook is one of the hoisting equipments for sucker rods. It is suitable for all depth and operating condition complete with single-hand latch construction and safety ring. It is safe and dependable enough. The sucker rod hook is designed and manufactured according to API Spec 8A/8C.

They are designed and manufactured according to API 8A/8C Specification for drilling and production hoisting equipment.

Technical Specifications of Sucker Rod Hook

Model	YG100	YG150	YG170	YG250
Rated Capacity(kN)	890	1350	1700	2550
Sheave qty/Dia(mm)	3/609.6	4/915	5/915	5/915
Hook style	3-hook	3-hook	3-hook	3-hook
Wire line OD(mm)	25.4	26/29	29	32
Hook opening dimension(mm)	_	165	180	190
Spring travel(mm)	_	180	180	180
Dimension (mm)	1685×675×510	3195×960×616	3307×960×616	3450×970×850
Weight (kg)	1010	3590	4585	4732

Package & Shipment

Packaging:Standard seaworthy packaging or as per requirement.

Shipping:By air or sea.

Oilfield Drill Spare Parts Elevator Sucker Rod Hook With API 8A/8C 3/4 - 11/8"

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
